3200 Transfer Line
3200 Transfer Line

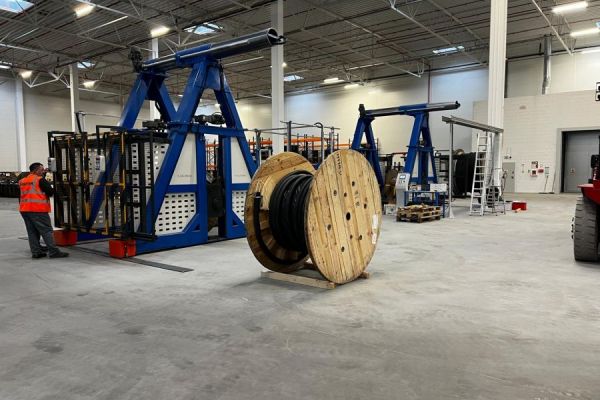

3200 mm Cable Pay off / Take Up (Transfer Line ) Manufacturing
Minimum reel diameter 1000mm
Maximum reel diameter 3200mm
Maximum cable diameter 150mm
cable cutting hydraulic scissors
Caterpil for thick cables
meter shehba
Doors with switch suitable for occupational safety
| A TYPE TRANSFER LINE | ||
| Model | 3200 A | 3700 A |
| Maximum Spool Diameter | 3200 mm | 3700 mm |
| Minimum Spool Diameter | 1000 mm | 1400 mm |
| Pinole Diameter | 80-100-110 mm | 80-100-110 mm |
| Type | Transfer line | Transfer line |
| Spool Lifting System | 3 kW AC Motor | 4 kW AC Motor |
| Drive Motor | AC Motor + Belt Drive System | AC Motor + Belt Drive System |
| Drive motor power | 18.5kW | 22 kW |
| On / Off Motor | With motor | With motor |
| Brake System | Pneumatic | Pneumatic |
| Maximum speed | 60 m/min | 60 m/min |
